F3RE032

Capacity: 320 kg.

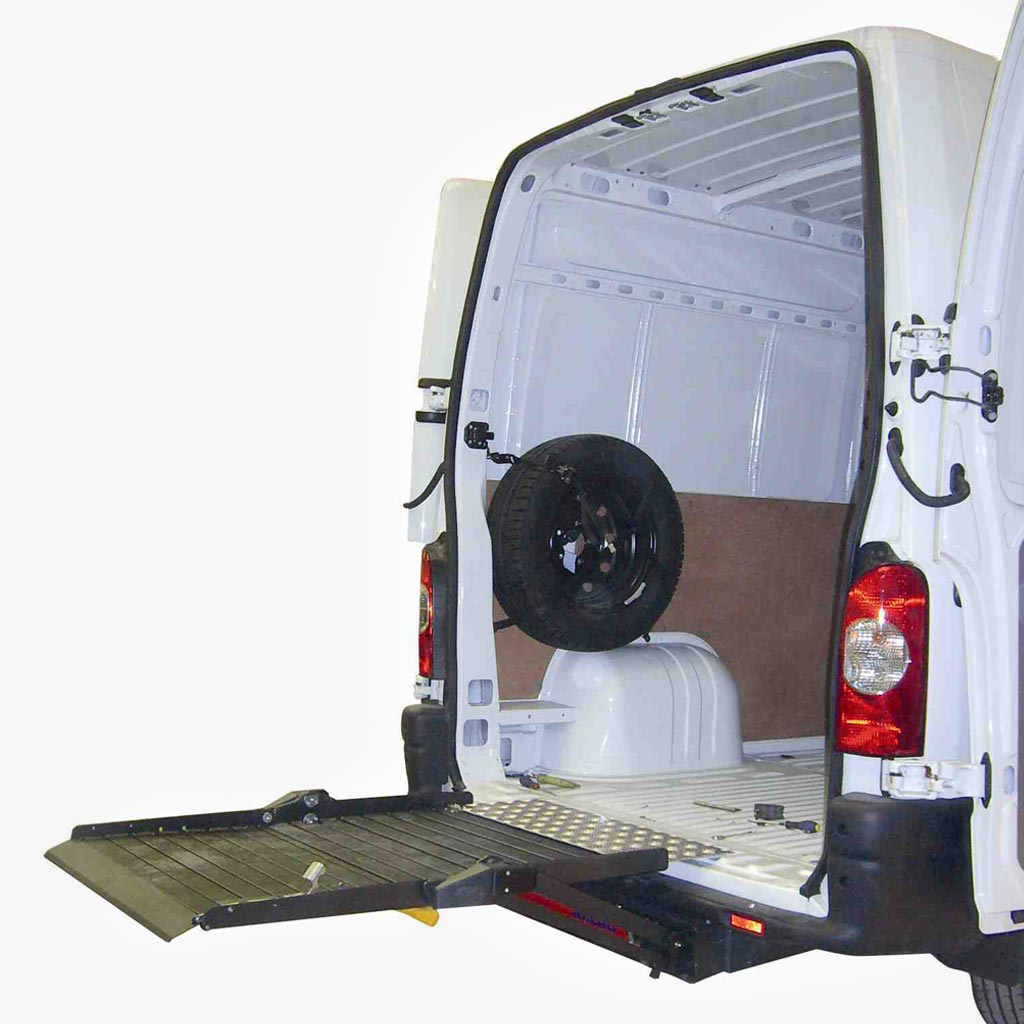

F3 RE 032 is a retractable tail-lift fully automatic for side installation under panel vans.
The steel box that contain the lift is with reduced dimensions that allow installation on a wide range of vans such as:

  • Volkswagen Crafter L2, L3
  • Renault Master L2, L3
  • Fiat Ducato L2, L3, L4
  • Opel Movano L2, L3
  • Ford Transit L2, L3
  • Citroen Jumper L2, L3, L4
  • Peugeot Boxer L2, L3, L4
  • Nissan NV 400 L2, L3
  • Man TGE L2, L3
  • Mercedes Benz Sprinter L2, L3

Specifications

Platform:

Steel + aluminum overlay sheet

Platform depth:

1100 mm deep 800 mm wide

Tilt cylinders:

2

Sliding system:

Electric deployment and stowage

Power supply:

12 V

Weight:

140 Kg (1100 mm platform) | 145 Kg (1200 mm platform)

Suggested options

  • Radio remote control.

Provided by:

  • Battery Disconnect Device With Key Main Switch;
  • Emergency Mechanical Hand Pump;
  • Toe Guard Protection Bridge Plate;
Anteo-sponda-F3RE0321
